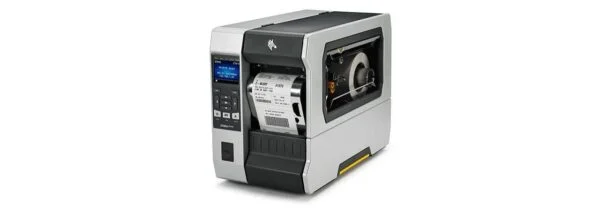

Zebra ZT610

Description

Advancing the legacy of the industry-leading Xi Series, the ZT600 Series industrial printers combine rugged durability and exceptional performance on a user-friendly, future-ready platform.

Get the exceptional performance you need to keep mission-critical operations running smoothly, plus intelligent, user-friendly features that give you total visibility and control at all times with 4-inch width (104 mm), 600 dpi printing on the ZT610.

Industries

Manufacturing
Transportation
Retail

Used For

Work-in-Process Tracking
Product ID/Serial Numbers
Receiving/Put-Away Labelling
Order Picking/Packing
Cross Docking
Compliance Labelling
Back-of-Store Operations

Additional information

Device Features	LAN, NFC, RFID, Ribbon Save, USB
Device Type	Industrial
Head Technology	Thermal Direct, Thermal Transfer

Specifications

ZT610 Series

Size and Weight

Height: 15.58″/395.68 mm
Width: 10.56″/268.2 mm
Depth: 19.88″/505 mm
Weight: 23 kg (50 pounds)

Connections and Expansions

Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet, and applicator interface.
IPv6 option is available as an external dongle attached to a parallel port

Operation Panel

Display: Brightly lit, 4.3-inch full-color touch display with clear navigation and immediate status visibility and support
External Buttons: Feed key, Restart key and Pause key
Simplified touch-display icon menu navigation system categorizes settings into logical groups of functions
Indicator: Online LED, Error LED

Memory

1 GB RAM memory
2 GB on-board linear Flash memory

Print Performance

Printhead: Near-edge
Print type: Thermal Transfer or Direct Thermal
Print width: up to 104 mm (4 inches)
Print length: up to 2,540 mm (100 inches)

ZT610 200dpi	ZT610 300dpi
Print Resolution 200 DPI (8 dots per mm) Print Speed Up to 305 mm/s (12-inches per second)	Print Resolution 300 DPI (12 dots per mm) Print Speed Up to 305 mm/s (12-inches per second)

Thermal Transfer Ribbon

Ribbon width 20 to 110 mm (0.79 to 4.3 inches)
Ribbon length up to 450m
Inner diameter 25.4 mm (1 inch)

Labels and Media

Media width 20 to 114mm (0.79 to 4 inches)
Media length: 8 to 2540 mm
Gap length: 2 to 20 mm
Thickness 0.013 to 0.25mm
Outer roll diameter up to 200 mm (8 inches)
Core size diameter 76.2 mm (3 inches)

Barcodes

1D Barcodes (Linear Symbologies) Supported

Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code

2D Barcodes (Matrix Symbologies) Supported

Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

UHF Tags Supported

Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols

Electrical and Operating Requirements

Operating Temperature:

Thermal transfer = 40ºF to 104ºF/5ºC to 40ºC
Direct thermal = 32ºF to 104ºF/0ºC to 40ºC

Operating Humidity: 20% to 85% non-condensing

Storage/Transportation Temperature: -22F to 140F/
-30C to 60C

Storage Humidity: 20% to 85% non-condensing

Safety and Environment

ENERGY STAR certified
RoHS compliant

Limited Warranty and Service

To enable predictable performance and improved business outcomes while eliminating unbudgeted repair costs, Zebra OneCare delivers expert technical assistance, repair services and software support for your ZT600 Series printer. Choose from a variety of plans to fit your specific operational needs—both today and as your operations evolve.

In the Box

Zebra ZT600 Series
Power lead
Documentation
CD-ROM containing drivers, manual

Configurable Options

(Sold separately)

Connectivity

Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet, and applicator interface. IPv6 option is available as an external dongle attached to a parallel port

Media Handling

Rewind: Internally rewinds a full roll of printed labels on 3″ core, or peels and rewinds liner
Cutter: Front-mount guillotine cutter and catch tray
Ink-side in ribbon supply spindle

RFID

Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols
Integrated RFID system is user-upgradable in the field and available on both 4″ and 6″ models
Adaptive Encoding Technology automatically selects optimum encode settings

Keyboard Display Unit

ZKDU™ keyboard display units for stand-alone printing applications
