Toshiba B-EX6-T1

Toshiba B-EX6-T1

Toshibas new Flagship printer; the EX6 continues the family tradition of industrial printers that provide award-winning efficency, speed and flexibilty.
The EX6 adds to this by providing a 160mm print width at 12ips.

Category:

Description

Toshiba has built a reputation in reducing the total cost of ownership on any of its products and the B-EX6 continues this with low energy use, ribbon save technology and user replaceable print heads. This printer model unit is the direct replacement for the B-SX6 and the ever popular B-SX5 and indeed is “Hot Swappable” for either unit. The B-EX6-T1-TS12 uses the same ribbon as the B-SX5 plus added wider sizes and will utilise either B-SX5 or B-SX6 drivers for immediate swap out capability.

Heavy Duty ROTARY Cutter Unit

The B-EX6T1 now has a Rotary Cutter Option offering time savings of up to 75% over the medium duty Disc Cutter.

Medium Duty DISC Cutter Unit

The B-EX6T1 has a cutter unit that implements a disc guillotine system. This design gives a clean and accurate cut whilst keeping its profile and noise levels minimal.
Initial experience with this model cutter type has been fantastic and ultra reliable.

Change Your Own Print Heads Without an Engineer

Snap-in printhead and platen rollers allow you to perform routine maintenance without the need for a service engineer saving both time and money. Hinged printhead block provides access to the feed path for easy cleaning, maintenance or just to remove a jammed label. Automatic printhead detection means the B-EX6 will always use the right settings without the need to re-configure each time.

Compatible with Zebra ZPL II

Advanced emulation technology enables the B-EX6 printer to work with ZPL II® data streams with no software changes required.

Connect with USB or Ethernet Built-in

The B-EX6 is shipped with USB 2.0 and Ethernet LAN as standard to provide fast connections to your PC or network. Options include serial and parallel ports to enable backwards compatibility and Wi-Fi for wireless connection to your network.

Re-designed and improved LCD display and printer menu

The new interface greatly improves the internal printer menu, making it easier than ever to adjust settings and troubleshoot common issues. New features include simple LAN set-up and IP address display and a new graphical sensor threshold setting.

Quick Specs:

  • Thermal Transfer or Direct Thermal
  • 300 or 200 dpi near edge print head
  • 12-inches per second max. print speed
  • USB 2.0
  • 10/100 BASE-T Ethernet, IPv6
  • ENERGY STAR
  • ZPL II Emulation

Additional information

Device Features

LAN, RFID, Ribbon Save, USB, WIFI

Device Type

Industrial

Head Technology

Thermal Direct, Thermal Transfer

Specifications

B-EX6T1 GS12 and TS12

Size and Weight

  • Height: 310 mm (12.1 inches)
  • Width: 331 mm (11.5 inches)
  • Depth: 480 mm (18.1 inches)
  • Weight: 20 kg (37.5 pounds)

Connections and Expansions

  • USB 2.0
  • 10/100 BASE-TX Ethernet (RJ-45 connector)

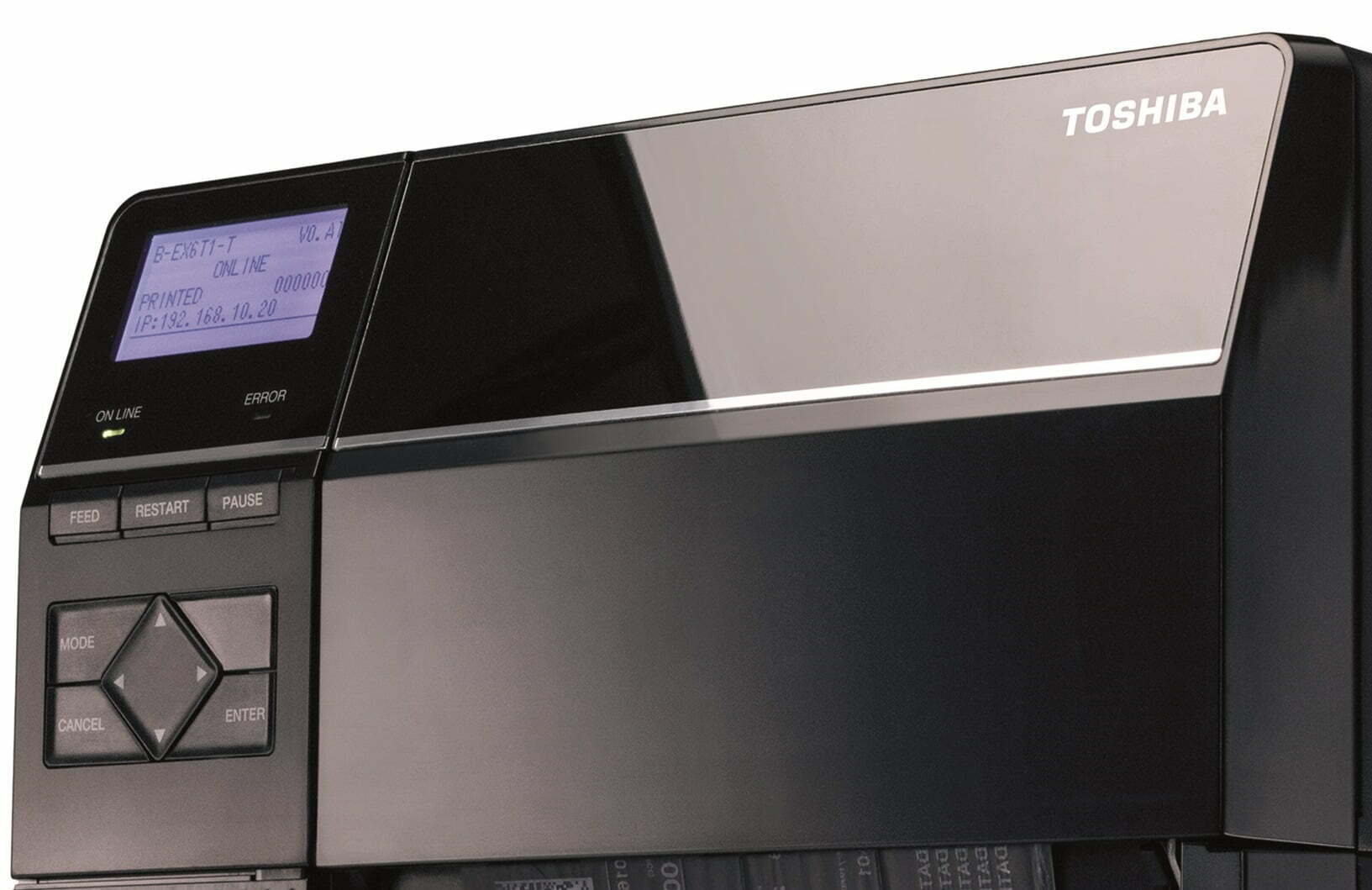

Operation Panel

Display
LCD backlit display
128 × 64 pixels
External Buttons
Feed key, Restart key and Pause key
Four directional keys
Mode key, Enter key and Cancel key
Indicator
Online LED, Error LED

Memory

  • 32 MB SDRAM and 16 MB Flash ROM

Print Performance

  • Printhead: Near-edge
  • Print type: Thermal Transfer or Direct Thermal
  • Print width: up to 160 mm (6.4 inches)
  • Print length: up to 1,490 mm (58 inches)
B-EX6T1-GS12B-EX6T1-TS12
Print Resolution
200 DPI (8 dots per mm)
Print Speed
Up to 305 mm/s
(12-inches per second)
Print Resolution
300 DPI (12 dots per mm)
Print Speed
Up to 305 mm/s
(12-inches per second)

Thermal Transfer Ribbon

  • Ribbon width 41 to 170 mm (1.6 to 6.5 inches)
  • Ribbon length upto 800 m
  • Outer diameter 90 mm (3.5 inches)

Labels and Media

  • Media width 50 to 165 mm (2 to 6.5 inches)
  • Media length: 8 to 1,498 mm
  • Gap length: 2 to 20 mm
  • Thickness 0.13 to 0.17 mm
  • Outer roll diameter up to 200 mm (8 inches)
  • Core size diameter 76.2 mm (3 inches)

Barcodes

1D Barcodes (Linear Symbologies) Supported

UPC-A including 2- and 5-digit add-ons; UPC-E including 2- and 5-digit add-ons; EAN-13 including 2- and 5-digit add-ons; EAN-8 including 2- and 5-digit add-ons; Code 39; Codabar; Standard (Industrial) and Interleaved 2 of 5; MSI; EAN-128; JAN-13; RM4SCC; POSTNET; GS1 DataBar.

2D Barcodes (Matrix Symbologies) Supported

PDF417; Micro PDF417; QR code; Data Matrix; MaxiCode; CP Code.

UHF Tags Supported

UHF EPC Gen2; ISO 18000-6C.

HF Tags Supported

TAGSYS (C210, C220, C240, C320); I-Code; Tag-It; ISO 15693.

Electrical and Operating Requirements

  • Line voltage 100–240 V AC
  • Frequency 50–60 Hz
  • Power consumption:
    • Printing 116 W
    • Standby 15 W
  • Operating temperature 5 ℃ to 40 ℃ (40° to 104° F)
  • Relative humidity 25% to 85% non-condensing

Safety and Environment

  • ENERGY STAR certified
  • RoHS compliant

Limited Warranty and Service

The Toshiba B-EX6T1 printer is warranted against defects in workmanship and materials for one year from date of shipment. The print head has a separate warranty of 100 km or 6 months, whichever is sooner.

Purchase a Service Contract to enhance the standard warranty up to five years for your B-EX6T1.

In the Box

  • Toshiba B-EX6T1
  • Power lead
  • Documentation
  • CD-ROM containing Windows drivers, manual

Configurable Options

(Sold separately)
  • Serial port (RS-232C) (B-EX700-RS-QM-R)
  • IEEE 802.11 a/b/g Wi-Fi wireless network card (B-EX700-WLAN-QM-R)
  • RFID module UHF (B-EX700-RFID-U2-EU-R)
  • Disc cutter module (B-EX204-QM-R)
  • Expansion I/O board (B-EX700-IO-QM-R)

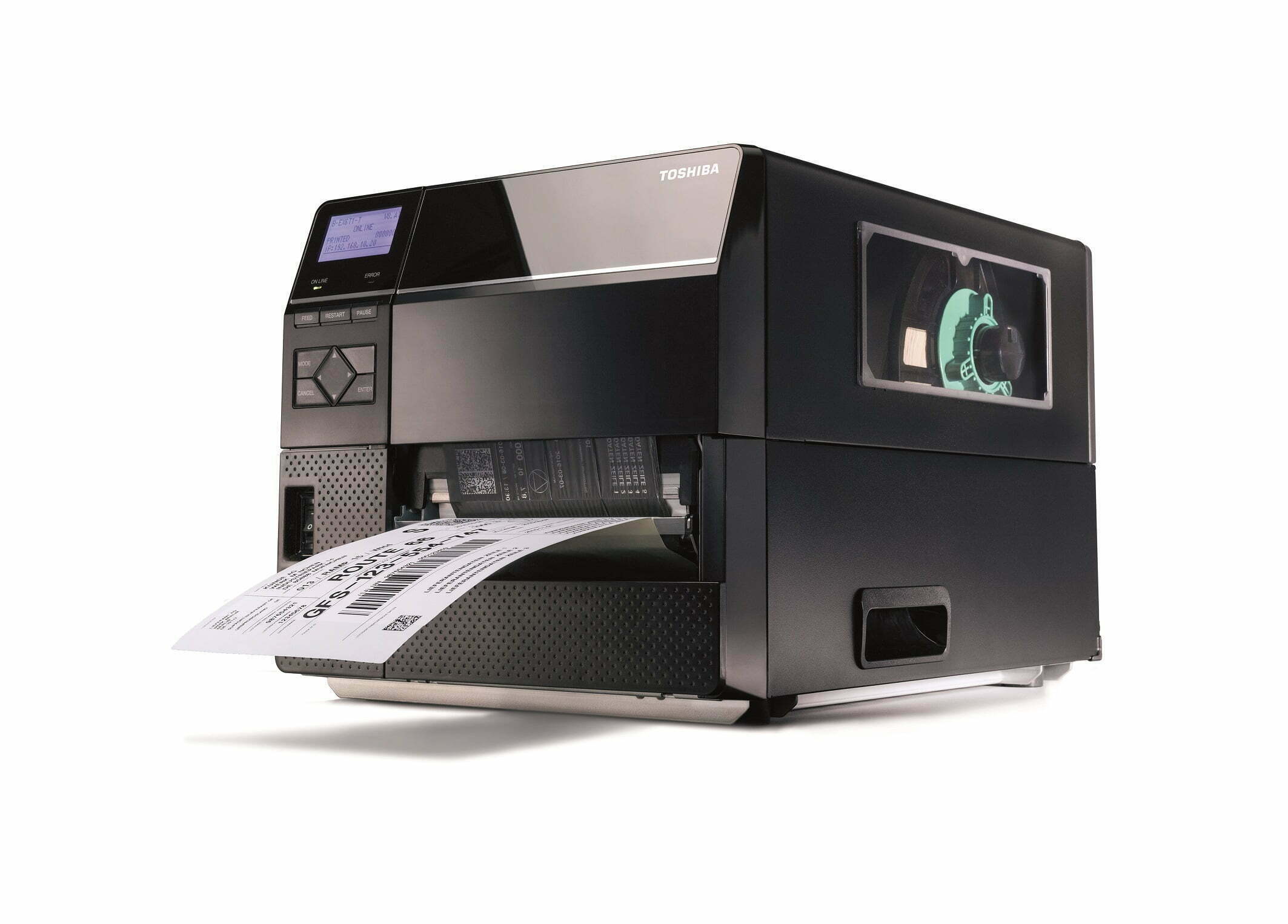

  • Peel off module
  • 200 dpi print head
  • 300 dpi print head
  • Narrow width platen
