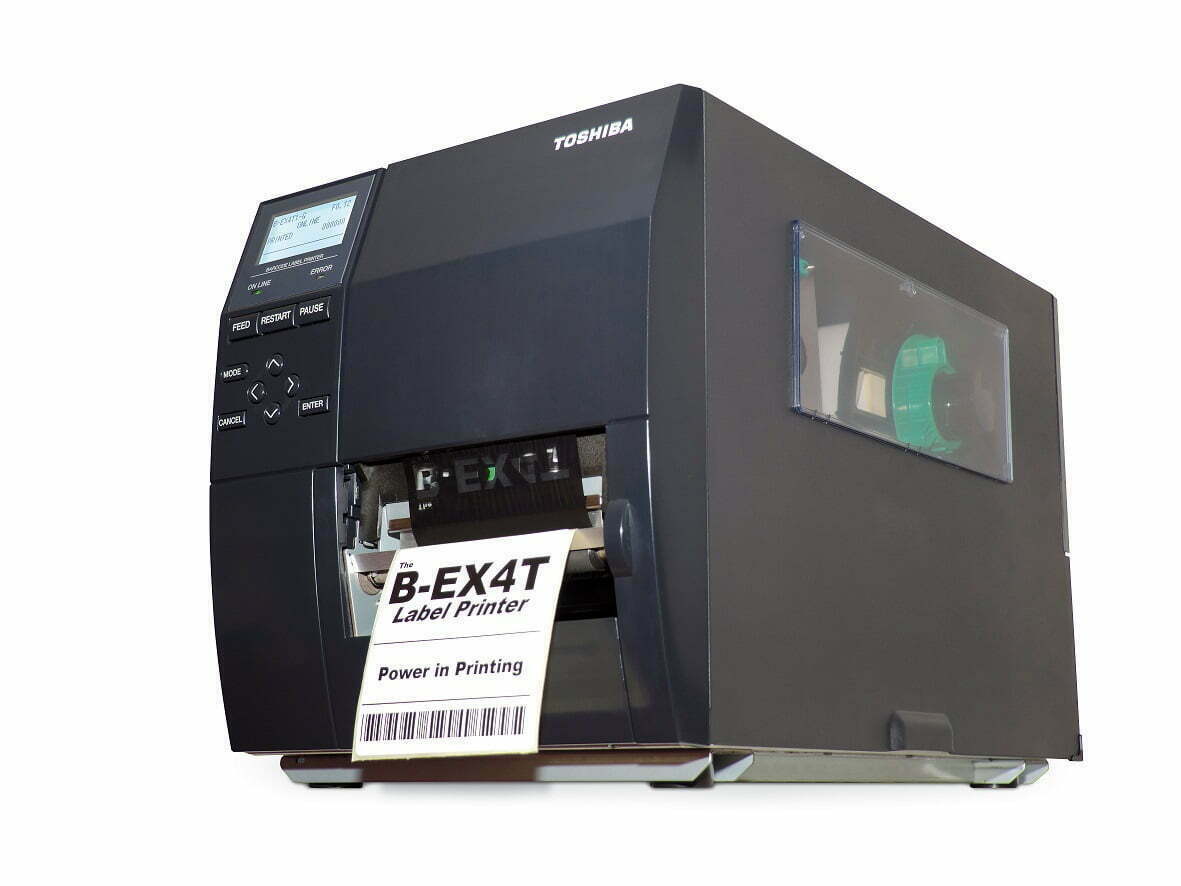

Toshiba B-EX4-T1

Description

Toshiba has built a reputation in reducing the total cost of ownership on any of its products and the B-EX4 continues this with low energy use, ribbon save technology and user replaceable print heads.

The B-EX4 was designed from the ground-up to be a leading high-speed / high-volume printer, maxing out at 14ips at retail-quality resolution.
The fastest Toshiba industrial printer currently available.

Change Your Own Print Heads Without an Engineer

Snap-in printhead and platen rollers allow you to perform routine maintenance without the need for a service engineer saving both time and money. Hinged printhead block provides access to the feedpath for easy cleaning, maintenance or just to remove a jammed label. Automatic printhead detection means the B-EX4 will always use the right settings without the need to re-configure each time.

Compatible with Zebra ZPL II

Advanced emulation technology enables the B-EX4 printer to work with ZPL II® data streams with no software changes required.

Connect with USB or Ethernet Built-in

The B-EX4 is shipped with USB 2.0 and Ethernet LAN as standard to provide fast connections to your PC or network. Options include serial and parallel ports to enable backwards compatibility and Wi-Fi for wireless connection to your network.

Improved LCD display and printer menu

The new interface greatly improve using the internal printer menu to adjust settings and troubleshoot common issues. New features include simple LAN set-up and IP address display and a new graphical sensor threshold setting.

Quick Specs:

Thermal Transfer or Direct Thermal
300 or 200 dpi near edge print head
14-inches per second max. print speed
USB 2.0
10/100 BASE-T Ethernet
ENERGY STAR

Additional information

Device Features	LAN, USB, WIFI
Device Type	Industrial
Head Technology	Thermal Direct, Thermal Transfer

Specifications

B-EX4T1 GS12 and TS12

Size and Weight

Height: 310 mm (12.1 inches)
Width: 278 mm (11.5 inches)
Depth: 460 mm (18.1 inches)
Weight: 17 kg (37.5 pounds)

Connections and Expansions

USB 2.0
10/100 BASE-TX Ethernet (RJ-45 connector)

Operation Panel

Display: LCD backlit display
128 × 64 pixels
External Buttons: Feed key, Restart key and Pause key
Four directional keys
Mode key, Enter key and Cancel key
Indicator: Power LED, Online LED, Error LED

Memory

32 MB SDRAM and 16 MB Flash ROM

Print Performance

Printhead: Near-edge
Print type: Thermal Transfer or Direct Thermal
Print width: up to 104 mm (4 inches)
Print length: up to 1,498 mm (58 inches)

B-EX4T1-GS12	B-EX4T1-TS12
Print Resolution 200 DPI (8 dots per mm) Print Speed Up to 304 mm/s (12-inches per second)	Print Resolution 300 DPI (12 dots per mm) Print Speed Up to 355 mm/s (14-inches per second)

Thermal Transfer Ribbon

Ribbon width 41 to 112 mm (1.6 to 4.4 inches)
Ribbon length 600 m
Outer diameter 90 mm (3.5 inches)

Labels and Media

Media width 25 to 120 mm (1 to 4.7 inches)
Media length: 8 to 1,498 mm
Gap length: 2 to 20 mm
Thickness 0.13 to 0.17 mm
Outer roll diameter up to 200 mm (8 inches)
Core size diameter 76.2 mm (3 inches)

Barcodes

1D Barcodes (Linear Symbologies) Supported

UPC-A including 2- and 5-digit add-ons; UPC-E including 2- and 5-digit add-ons; EAN-13 including 2- and 5-digit add-ons; EAN-8 including 2- and 5-digit add-ons; Code 39; Codabar; Standard (Industrial) and Interleaved 2 of 5; MSI; EAN-128; JAN-13; RM4SCC; POSTNET; GS1 DataBar.

2D Barcodes (Matrix Symbologies) Supported

PDF417; Micro PDF417; QR code; Data Matrix; MaxiCode; CP Code.

UHF Tags Supported

UHF EPC Gen2; ISO 18000-6C.

HF Tags Supported

TAGSYS (C210, C220, C240, C320); I-Code; Tag-It; ISO 15693.

Electrical and Operating Requirements

Line voltage 100–240 V AC
Frequency 50–60 Hz
Power consumption:
- Printing 116 W
- Standby 15 W
Operating temperature 5 ℃ to 40 ℃ (40° to 104° F)
Relative humidity 25% to 85% non-condensing

Safety and Environment

ENERGY STAR certified
RoHS compliant

Limited Warranty and Service

The Toshiba B-EX4T1 printer is warranted against defects in workmanship and materials for one year from date of shipment. The print head has a separate warranty of 100 km or 6 months, whichever is sooner.

Purchase a Service Contract to enhance the standard warranty up to five years for your B-EX4T1.

In the Box

Toshiba B-EX4T1
Power lead
Documentation
CD-ROM containing Windows drivers, manual

Configurable Options

(Sold separately)

Parallel port (Centronics) (B-EX700-CEN-QM-R)
Serial port (RS-232C) (B-EX700-RS-QM-R)
IEEE 802.11 a/b/g Wi-Fi wireless network card (B-EX700-WLAN-QM-R)
RFID module UHF (B-EX700-RFID-U2-EU-R)
Disc cutter module (B-EX204-QM-R)
Rotary cutter module (B-EX204-R-QM-R)
USB 2.0 host port and Real Time Clock (B-EX700-RTC-GM-R)
Expansion I/O board (B-EX700-IO-QM-R)
Ribbon save module (B-EX904-R-QM-R)
200 dpi print head (B-EX704-TPHE2-QM-R)
300 dpi print head (B-EX704-TPHE3-QM-R)
Narrow width platen (B-EX904-R-QM-R)
